Selection Cordless Hedgetrimmers

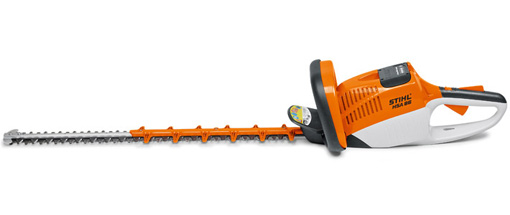

HSA 86 Kit

General

HSA 86
More pictures

The cordless hedge trimmer offers even more power and efficiency at a low weight. It ensures a constant stroke rate while pruning thick hedges. 33 mm tooth spacing, double-sided cutting blades in two lengths, screwed-on cut and tip protector, weight from 3.0 kg. With AP 200 and AL 101.

Versions

Price

* Manufacturers recommended retail pricing. Prices reflect current recommended retail pricing and may be a promotional price. These prices are subject to change without notice. For more information about current promotions, please visit our Current Promotions page by clicking here.

The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Stockist for further information.

Technical data

HSA 86

Technical data

Rated voltage V 36
Weight kg 1) 3,3
Total length cm 114
Tooth spacing mm 33
Blade length 620mm/24"
Battery life time AP 100 min 2) up to 72
Battery life time AP 200 min 2) up to 144
Battery life time AP 300 min 2) up to 180
Battery life time AP 300 S min 2) up to 223
Battery life time AR 1000 min 2) up to 450
Battery life time AR 2000 min 2) up to 660
Battery life time AR 3000 min 2) up to 800

1) Without battery
2) Battery life times are approximate and may vary depending on application

The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Stockist for further information.

Features

HSA 86

Standard features

  • Two handed design Zoom
    Two handed design

    The tool is easily started by activating both switches on the loop handle and the rear handle at the same time. The cutting speed is continuously variable using the rear control – for a fine and precise cut. Especially practical: the two handed design is suited for both left-handed and right-handed users.

  • Blade tip protector Zoom
    Blade tip protector

    The tip protector comes as standard and makes cutting near the ground or along walls easier while protecting the special cutters from damage.

  • Functional design Zoom
    Functional design

    The engine housing has smooth surfaces and round contours. That prevents things from catching on the tool or from it getting caught on branches. The hedge trimmers resist soiling and are easy to clean.

  • Blade cover Zoom
    Blade cover

    Protects the cutting blade for safe storeage and transport of the hedgetrimmer.

  • Hanging eye Zoom
    Hanging eye

    The hedgetrimmers can also be conveniently hung up on the wall with the practical hanging eye.

  • AL 101 charger
    AL 101 charger

    Charger for the STIHL COMPACT cordless power system. With operating mode indicator (LED) and cable tie with Velcro tape. The charger can be wall mounted if required.

The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Stockist for further information.

Accessories

HSA 86

Accessories

    • AP adapter Zoom
      AP adapter

      The AP adapter is needed to transfer power between a STIHL AP battery or a STIHL AR battery and a power tool with a battery slot in combination with the AP holster with connecting cable.

    Versions

    Price

    * Manufacturers recommended retail pricing. Prices reflect current recommended retail pricing and may be a promotional price. These prices are subject to change without notice. For more information about current promotions, please visit our Current Promotions page by clicking here.

    • AR 1000 backpack battery Zoom
      AR 1000 backpack battery

      Backpack lithium-ion batteries with big capacity for longer running times. Sturdy housing with base and charge level indicator (six LEDs), comfortable and ergonomically harness with integrated carry handle and rain protection cover. 626 Wh battery energy, weight 5.5 kg.

    Technical data
    Rated voltage 36 V
    Battery Capacity 1) 626 Wh
    Weight with carrying system 5,5 kg

    1) Energieinhalt gemäß Zellherstellerspezifikation. Zur Erhöhung der Lebensdauer ist der in der tatsächlichen Anwendung zur Verfügung stehende Energieinhalt geringer.

    Versions

    Price

    * Manufacturers recommended retail pricing. Prices reflect current recommended retail pricing and may be a promotional price. These prices are subject to change without notice. For more information about current promotions, please visit our Current Promotions page by clicking here.

    • AP 300 battery Zoom
      AP 300 battery

      Compatible with the PRO cordless power system. Very powerful lithium-ion batteries with charge level indicator (four LEDs). 227 Wh battery power.

    Technical data
    Weight 1,8 kg
    Battery Capacity 1) 227 Wh
    Rated voltage 36 V

    1) Energieinhalt gemäß Zellherstellerspezifikation. Zur Erhöhung der Lebensdauer ist der in der tatsächlichen Anwendung zur Verfügung stehende Energieinhalt geringer.

    Versions

    Price

    * Manufacturers recommended retail pricing. Prices reflect current recommended retail pricing and may be a promotional price. These prices are subject to change without notice. For more information about current promotions, please visit our Current Promotions page by clicking here.

    • AP 100 battery Zoom
      AP 100 battery

      Compatible with the STIHL cordless power system. Light weight 36v Lithium-Ion PRO battery with charge level indicator (four LEDs). 94 Wh battery energy, weight 0.8 kg.

    Technical data
    Weight 0,9 kg
    Battery Capacity 1) 94 Wh
    Rated voltage 36 V

    1) Energieinhalt gemäß Zellherstellerspezifikation. Zur Erhöhung der Lebensdauer ist der in der tatsächlichen Anwendung zur Verfügung stehende Energieinhalt geringer.

    Versions

    Price

    * Manufacturers recommended retail pricing. Prices reflect current recommended retail pricing and may be a promotional price. These prices are subject to change without notice. For more information about current promotions, please visit our Current Promotions page by clicking here.

    • AP 300 S battery Zoom
      AP 300 S battery

      Compatible with the PRO cordless power system. Very powerful lithium-ion batteries with charge level indicator (four LEDs). 281 Wh battery power.

    Technical data
    Weight 1,8 kg
    Battery Capacity 1) 281 Wh
    Rated voltage 36 V

    1) Energieinhalt gemäß Zellherstellerspezifikation. Zur Erhöhung der Lebensdauer ist der in der tatsächlichen Anwendung zur Verfügung stehende Energieinhalt geringer.

    Versions

    Price

    * Manufacturers recommended retail pricing. Prices reflect current recommended retail pricing and may be a promotional price. These prices are subject to change without notice. For more information about current promotions, please visit our Current Promotions page by clicking here.

    • AP 200 battery Zoom
      AP 200 battery

      Compatible with the STIHL cordless power system. Light weight 36v Lithium-Ion PRO battery with charge level indicator (four LEDs). 187 Wh battery energy, weight 1,3 kg.

    Technical data
    Weight 1,3 kg
    Battery Capacity 1) 187 Wh
    Rated voltage 36 V

    1) Energieinhalt gemäß Zellherstellerspezifikation. Zur Erhöhung der Lebensdauer ist der in der tatsächlichen Anwendung zur Verfügung stehende Energieinhalt geringer.

    Versions

    Price

    * Manufacturers recommended retail pricing. Prices reflect current recommended retail pricing and may be a promotional price. These prices are subject to change without notice. For more information about current promotions, please visit our Current Promotions page by clicking here.

    • AR 3000 Backpack Battery Zoom
      AR 3000 Backpack Battery

      Backpack lithium-ion batteries with big capacity for longer running times. Sturdy housing with base and charge level indicator (six LEDs), comfortable and ergonomically harness with integrated carry handle and rain protection cover. 1,148 Wh battery energy, weight 6.8 kg excluding / 8,1 kg including carrying system. With rain protection. For more information about our STIHL Cordless Tools please see our Battery FAQ's for further information.

    Technical data
    Rated voltage 36 V
    Battery Capacity 1) 1.148 Wh
    Weight with carrying system 8,1 kg

    1) Energieinhalt gemäß Zellherstellerspezifikation. Zur Erhöhung der Lebensdauer ist der in der tatsächlichen Anwendung zur Verfügung stehende Energieinhalt geringer.

    Versions

    Price

    * Manufacturers recommended retail pricing. Prices reflect current recommended retail pricing and may be a promotional price. These prices are subject to change without notice. For more information about current promotions, please visit our Current Promotions page by clicking here.

    • AR 2000 backpack battery Zoom
      AR 2000 backpack battery

      Backpack lithium-ion batteries with big capacity for longer running times. Sturdy housing with base and charge level indicator (six LEDs), comfortable and ergonomically harness with integrated carry handle and rain protection cover. 916 Wh battery energy, weight 7.8 kg. For more information about our STIHL Cordless Tools please see our Battery FAQ's for further information.

    Technical data
    Rated voltage 36 V
    Battery Capacity 1) 916 Wh
    Weight with carrying system 7,8 kg

    1) Energieinhalt gemäß Zellherstellerspezifikation. Zur Erhöhung der Lebensdauer ist der in der tatsächlichen Anwendung zur Verfügung stehende Energieinhalt geringer.

    Versions

    Price

    * Manufacturers recommended retail pricing. Prices reflect current recommended retail pricing and may be a promotional price. These prices are subject to change without notice. For more information about current promotions, please visit our Current Promotions page by clicking here.

    • Catcher Plate Zoom
      Catcher Plate

      For catching cuttings. 50 cm bar length, tool-free, can be mounted on both sides. Suitable for HSA 66, HSA 86, all HSE and HLA models.

    Versions

    Price

    * Manufacturers recommended retail pricing. Prices reflect current recommended retail pricing and may be a promotional price. These prices are subject to change without notice. For more information about current promotions, please visit our Current Promotions page by clicking here.

The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Stockist for further information.

Documents

Owners manuals and safety brochures

STIHL HSA 66, 86 (D, DK, E, F, FIN, GB, GR, H, I, N, NL, P, PL, S) Download PDF, 25,1 MB

Notes:

  • STIHL and VIKING online owner’s manuals are usually for the latest versions of the machine. Your product may be a slightly older production model but the manual will still be appropriate for the relevant model number.
  • The languages ​​contained in the document are also displayed in brackets, for example (GB) = English
