KMA 130 Battery Combi Engine Tool Only
BATTERY COMBI ENGINE
General
Powerful Battery Electric CombiEngine with high torque and low weight. Three power levels for energy-efficient and low-noise work in all applications, harness. Weight: 3.2 kg.
For more information about our STIHL Cordless Tools please see our Battery FAQ's for further information.
Receive $150 to spend on STIHL accessories when you buy this tool.
SHOP ONLINE HERE. Valid until February 29th, 2024.
Versions
Price-
KMA 130 R Tool Only$745.00*
* Manufacturers recommended retail pricing. Prices reflect current recommended retail pricing and may be a promotional price. These prices are subject to change without notice. For more information about current promotions, please visit our Current Promotions page by clicking here.
The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Stockist for further information.
Technical data
Technical data
| Technical data | Value |
|---|---|
| Weight kg | 3,2 |
| Rated voltage V | 36 |
| Weight kg 1) | 3,2 |
| Sound power level dB(A) 2) | 104 |
| Sound pressure level dB(A) 2) | 92 |
| Blowing force with BG-KM N | 15 |
| Air speed with BG-KM m/s 3) | 58 |
| Voltage V | 36 |
| Working hours per battery charge with KW-KM and AP 200 min 4) | 30/25/23 |
| Working hours per battery charge with KW-KM and AP 300 min 4) | 45/40/35 |
| Working hours per battery charge with KW-KM and AR 1000 min 4) | 125/110/90 |
| Working hours per battery charge with KW-KM and AR 2000 min 4) | 180/155/140 |
| Working hours per battery charge with KW-KM and AR 3000 min 4) | 230/190/180 |
| Working hours per battery charge with BF-KM and AP 100 min 4) | 15/13/12 |
| Working hours per battery charge with BF-KM and AP 200 min 4) | 30/25/23 |
| Working hours per battery charge with BF-KM and AP 300 min 4) | 45/40/35 |
| Working hours per battery charge with BF-KM and AR 2000 min 4) | 180/155/140 |
| Working hours per battery charge with BF-KM and AR 1000 min 4) | 125/110/90 |
| Working hours per battery charge with BF-KM and AR 3000 min 4) | 230/190/180 |
| Working hours per battery charge with KB-KM and AP 200 min 4) | 30/25/23 |
| Working hours per battery charge with KB-KM and AP 300 min 4) | 45/40/35 |
| Working hours per battery charge with KB-KM and AR 1000 min 4) | 125/110/90 |
| Working hours per battery charge with KB-KM and AR 2000 min 4) | 180/155/140 |
| Working hours per battery charge with KB-KM and AR 3000 min 4) | 230/190/180 |
| Working hours per battery charge with BG-KM and AP 300 min 4) | 35/20/13 |
| Working hours per battery charge with BG-KM and AR 1000 min 4) | 100/60/40 |
| Working hours per battery charge with BG-KM and AR 2000 min 4) | 150/85/60 |
| Working hours per battery charge with BG-KM and AR 3000 min 4) | 190/110/70 |
| Working hours per battery charge with HT-KM and AP 200 min 4) | 40/30/18 |
| Working hours per battery charge with HT-KM and AP 300 min 4) | 60/45/30 |
| Working hours per battery charge with HT-KM and AR 1000 min 4) | 170/125/75 |
| Working hours per battery charge with HT-KM and AR 2000 min 4) | 250/180/110 |
| Working hours per battery charge with HT-KM and AR 3000 min 4) | 310/230/140 |
| Working hours per battery charge with HL-KM 0° and AP 200 min 4) | 120/95/80 |
| Working hours per battery charge with HL-KM 0° and AP 300 mn 4) | 180/145/120 |
| Working hours per battery charge with HL-KM 0° and AR 1000 min 4) | 500/400/330 |
| Length cm 5) | 91 |
| Working hours per battery charge with HL-KM 0° and AR 2000 min 4) | 730/580/480 |
| Working hours per battery charge with HL-KM 0° and AR 3000 min 4) | 900/730/600 |
| Working hours per battery charge with FH-KM 145° and AP 200 min 4) | 120/95/80 |
| Working hours per battery charge with FH-KM 145° and AP 300 min 4) | 180/145/120 |
| Working hours per battery charge with FH-KM 145° and AR 1000 min 4) | 500/400/330 |
| Working hours per battery charge with FH-KM 145° and AR 2000 min 4) | 730/580/480 |
| Working hours per battery charge with FH-KM 145° and AR 3000 min 4) | 900/730/600 |
| Working hours per battery charge with HL-KM 135° and AP 200 min 4) | 120/95/80 |
| Working hours per battery charge with HL-KM 135° and AP 300 min 4) | 180/145/120 |
| Working hours per battery charge with HL-KM 135° and AR 1000 min 4) | 500/400/330 |
| Working hours per battery charge with HL-KM 135° and AR 2000 min 4) | 730/580/480 |
| Working hours per battery charge with HL-KM 135° and AR 3000 min 4) | 900/730/600 |
| Working hours per battery charge with SP-KM and AP 100 min 4) | 25/21/16 |
| Working hours per battery charge with SP-KM and AP 200 min 4) | 50/40/30 |
| Working hours per battery charge with SP-KM and AP 300 min 4) | 75/60/50 |
| Working hours per battery charge with SP-KM and AR 1000 min 4) | 200/170/130 |
| Working hours per battery charge with SP-KM and AR 2000 min 4) | 300/250/200 |
| Working hours per battery charge with SP-KM and AR 3000 min 4) | 380/310/240 |
| Working hours per battery charge with FCS-KM and AP 100 min 4) | 11/9/6 |
| Working hours per battery charge with FCS-KM and AP 200 min 4) | 22/17/11 |
| Working hours per battery charge with FCS-KM and AP 300 min | 32/25/17 |
| Working hours per battery charge with FCS-KM and AR 3000 min 4) | 90/70/45 |
| Working hours per battery charge with FCS-KM and AR 2000 min 4) | 130/100/70 |
| Working hours per battery charge with FCS-KM and AR 3000 min 4) | 160/130/85 |
1) Without battery
2) K-factor according to DIR 2006/42/EC = 2.0 dB (A)
3) In blower mode with round nozzle
4) Level 1/level 2/level 3, the battery working times for each battery charge are estimates and may vary depending on how the tool is used.
5) Basisgerät bis Muffe
The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Stockist for further information.
Features
Standard features
The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Stockist for further information.
CombiTools
Accessories
-
-
KW-KM Sweeper Combi Attachment
Approved for all CombiEngines. The soft, but robust rubber paddles clean all surfaces, removing dirt, sand, pebbles and leaves. Ideal for sweeping footpaths and roads.
Technical data Value Width 60 cm Weight 7,4 kg Overall length 125 cm Versions
Price- KW-KM Sweeper Attachment from $797.00*
* Manufacturers recommended retail pricing. Prices reflect current recommended retail pricing and may be a promotional price. These prices are subject to change without notice. For more information about current promotions, please visit our Current Promotions page by clicking here.
-
-
-
KB-KM Bristle Sweeper Combi Attachment
Approved for all CombiEngines. The stiff bristles even pick the dirt out of gutters and grooves. The brush rotates backwards so that the dirt is always pushed forward.
Technical data Value Width 60 cm Weight 6,4 kg Overall length 125 cm Versions
Price- KB-KM Bristle Sweeper Attachment from $797.00*
* Manufacturers recommended retail pricing. Prices reflect current recommended retail pricing and may be a promotional price. These prices are subject to change without notice. For more information about current promotions, please visit our Current Promotions page by clicking here.
-
-
-
BF-KM Soil Cultivator Combi Attachment
Approved for all CombiEngines. Working width 22 cm. The pick tine CombiTool helps you to aerate and cultivate soil. From strawberries to greens – now even the smallest gaps between plants can be tended with precision.
Technical data Value Width 22 cm Weight 4,1 kg Overall length 100 cm Versions
Price- BF-KM Soil Cultivator Attachment from $530.00*
* Manufacturers recommended retail pricing. Prices reflect current recommended retail pricing and may be a promotional price. These prices are subject to change without notice. For more information about current promotions, please visit our Current Promotions page by clicking here.
-
-
-
BG-KM Blower Combi Attachment
Approved for all CombiEngines. This low weight Blower with high blowing power makes it quick and easy to clear paths and open areas of leaves and grass cuttings.
Technical data Value Weight 1,8 kg Overall Length 89 cm Versions
Price- BG-KM Blower Attachment from $316.00*
* Manufacturers recommended retail pricing. Prices reflect current recommended retail pricing and may be a promotional price. These prices are subject to change without notice. For more information about current promotions, please visit our Current Promotions page by clicking here.
-
-
-
HL-KM 0º Hedge Trimmer Combi Attachment
Ideal for shaping high and wide hedges. Weight: 1.6 kg.
Technical data Value Overall length 107 cm Weight 1,6 kg Versions
Price- HL-KM 0º Hedge Trimmer Attachment from $476.00*
* Manufacturers recommended retail pricing. Prices reflect current recommended retail pricing and may be a promotional price. These prices are subject to change without notice. For more information about current promotions, please visit our Current Promotions page by clicking here.
-
-
-
FH-KM 145º Scrub Cutter Combi Attachment
For cutting close to the ground and for low-spin mowing in very narrow spaces as well as in areas near traffic. Flexible adjustment mechanism, space-saving carrying position. Weight: 2.1 kg.
Technical data Value Overall length 126 cm Weight 2,1 kg Versions
Price- FH-KM 145º Scrub Cutter Attachment from $530.00*
* Manufacturers recommended retail pricing. Prices reflect current recommended retail pricing and may be a promotional price. These prices are subject to change without notice. For more information about current promotions, please visit our Current Promotions page by clicking here.
-
-
-
HL-KM 145º Hedge Trimmer Combi Attachment
For demanding work on high hedges and use close to the ground. The adjustment mechanism can be adjusted in increments, space-saving carrying position. Weight: 2.3 kg.
Technical data Value Overall length 148 cm Weight 2,3 kg Versions
Price- HL-KM 145º Hedge Trimmer Attachment from $530.00*
* Manufacturers recommended retail pricing. Prices reflect current recommended retail pricing and may be a promotional price. These prices are subject to change without notice. For more information about current promotions, please visit our Current Promotions page by clicking here.
-
-
-

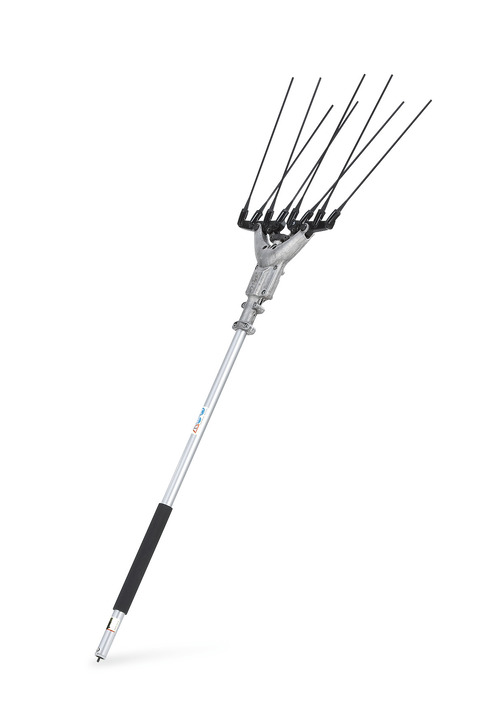

SP-KM Harvester Combi Attachment
Approved for all CombiEngines. For easy harvesting of nuts, pistachios and olives. Two separately angled rakes, especially light and low in vibration.
Technical data Value Weight 1,95 kg Overall length 144 cm Versions
Price- SP-KM Harvester Attachment from $637.00*
* Manufacturers recommended retail pricing. Prices reflect current recommended retail pricing and may be a promotional price. These prices are subject to change without notice. For more information about current promotions, please visit our Current Promotions page by clicking here.
-
The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Stockist for further information.
Accessories
Accessories
-
-
AP 100 battery
Compatible with the STIHL cordless power system. Light weight 36v Lithium-Ion battery with charge level indicator (four LEDs). 94 Wh battery energy, weight 0.8 kg.
Technical data Value Rated voltage 36 V Weight 0,9 kg Battery Capacity 1) 94 W·h Rated capacity (IEC 61960) 2,4 A·h Battery cell technology LITHIUM-ION Charge voltage 42 V Temperature range 5-40 °C Discharge temperature range -10-50 °C 1) Power capacity according to the specifications of the cell manufacturer. The actual power capacity available during operation is lower, to increase service life
Versions
Price- AP 100 from $165.00*
* Manufacturers recommended retail pricing. Prices reflect current recommended retail pricing and may be a promotional price. These prices are subject to change without notice. For more information about current promotions, please visit our Current Promotions page by clicking here.
-
-
-
AP 200 PRO Battery - AP Battery System
The STIHL AP-System supports you in your daily garden, landscape and tree maintenance tasks. The matching AP lithium-ion batteries help you to use STIHL cordless power tools even for demanding tasks. Four LED lights ensure that you are always informed of the battery charge level.
STIHL AP batteries with a nominal voltage of 36 V can be recharged using STIHL AL cordless quick chargers or the STIHL AL 101 cordless standard charger.
STIHL AP batteries have the following energy capacities:
- AP 100 (item no. 48504006550) with 94 Wh battery power, 0.9 kg weight
- AP 200 (item no. 48504006560) with 187 Wh battery power, 1.3 kg weight
- AP 300 (item no. 48504006570) with 227 Wh battery power, 1.8 kg weight
- AP 300 S (item no. 48504006580) with 281 Wh battery power, 1.8 kg weight
- AP 500 S (item no. EA014006500) with 337 Wh battery power, 2.0 kg weight
In our overview of battery life and charging times, you can see how long you can work with your STIHL cordless power tool and how long the inserted AP battery takes to charge. You can also see in the overview which AP battery is recommended for your STIHL power tool.
Note: the AP 200 battery is certified in accordance with protection class IPX4.
Technical data Value Rated voltage 36 V Weight 1,3 kg Battery Capacity 1) 187 W·h Rated capacity (IEC 61960) 4,8 A·h Battery cell technology LITHIUM-ION Charge voltage 42 V Temperature range 5-40 °C Discharge temperature range -10-50 °C 1) Power capacity according to the specifications of the cell manufacturer. The actual power capacity available during operation is lower, to increase service life
Versions
Price- AP 200 PRO Battery from $199.00*
* Manufacturers recommended retail pricing. Prices reflect current recommended retail pricing and may be a promotional price. These prices are subject to change without notice. For more information about current promotions, please visit our Current Promotions page by clicking here.
-
-
-
AP 300 PRO Battery - AP Battery System
Very powerful lithium-ion batteries with charge level indicator (four LEDs). 227 Wh battery power.
Technical data Value Rated voltage 36 V Weight 1,8 kg Battery Capacity 1) 227 W·h Rated capacity (IEC 61960) 6 A·h Battery cell technology LITHIUM-ION Charge voltage 42 V Temperature range 5-40 °C Discharge temperature range -10-50 °C 1) Power capacity according to the specifications of the cell manufacturer. The actual power capacity available during operation is lower, to increase service life
Versions
Price- AP 300 PRO Battery from $295.00*
* Manufacturers recommended retail pricing. Prices reflect current recommended retail pricing and may be a promotional price. These prices are subject to change without notice. For more information about current promotions, please visit our Current Promotions page by clicking here.
-
-
-
AP 300 S PRO Battery - AP Battery System
The STIHL AP-System supports you in your daily garden, landscape and tree maintenance tasks. The matching AP lithium-ion batteries help you to use STIHL cordless power tools even for demanding tasks. Four LED lights ensure that you are always informed of the battery charge level.
STIHL AP batteries with a nominal voltage of 36 V can be recharged using STIHL AL cordless quick chargers or the STIHL AL 101 cordless standard charger.
STIHL AP batteries have the following energy capacities:
- AP 100 (item no. 48504006550) with 94 Wh battery power, 0.9 kg weight
- AP 200 (item no. 48504006560) with 187 Wh battery power, 1.3 kg weight
- AP 300 (item no. 48504006570) with 227 Wh battery power, 1.8 kg weight
- AP 300 S (item no. 48504006580) with 281 Wh battery power, 1.8 kg weight
- AP 500 S (item no. EA014006500) with 337 Wh battery power, 2.0 kg weight
In our overview of battery life and charging times, you can see how long you can work with your STIHL cordless power tool and how long the inserted AP battery takes to charge. You can also see in the overview which AP battery is recommended for your STIHL power tool.
Note: the AP 300 S battery is certified in accordance with protection class IPX4.
Technical data Value Rated voltage 36 V Weight 1,8 kg Battery Capacity 1) 281 W·h Rated capacity (IEC 61960) 7,2 A·h Battery cell technology LITHIUM-ION Charge voltage 42 V Temperature range 5-40 °C Discharge temperature range -10-50 °C 1) Power capacity according to the specifications of the cell manufacturer. The actual power capacity available during operation is lower, to increase service life
Versions
Price- AP 300 S PRO Battery from $375.00*
* Manufacturers recommended retail pricing. Prices reflect current recommended retail pricing and may be a promotional price. These prices are subject to change without notice. For more information about current promotions, please visit our Current Promotions page by clicking here.
-
-
-
AR 1000 Backpack Battery
Backpack lithium-ion batteries with big capacity for longer running times. Sturdy housing with base and charge level indicator (six LEDs), comfortable and ergonomically harness with integrated carry handle and rain protection cover. 626 Wh battery energy, weight 5.5 kg.
Technical data Value Weight 4,3 kg Rated voltage 36 V Battery Capacity 1) 626 W·h Rated capacity (IEC 61960) 16,6 A·h Battery cell technology LITHIUM-ION Temperature range 5-40 °C Charge voltage 41 V Weight with carrying system 5,5 kg 1) Power capacity according to the specifications of the cell manufacturer. The actual power capacity available during operation is lower, to increase service life
Versions
Price- AR 1000 Backpack Battery from $1,390.00*
* Manufacturers recommended retail pricing. Prices reflect current recommended retail pricing and may be a promotional price. These prices are subject to change without notice. For more information about current promotions, please visit our Current Promotions page by clicking here.
-
-
-
AR 2000 backpack battery
Backpack lithium-ion batteries with big capacity for longer running times. Sturdy housing with base and charge level indicator (six LEDs), comfortable and ergonomically harness with integrated carry handle and rain protection cover. 916 Wh battery energy, weight 7.8 kg. For more information about our STIHL Cordless Tools please see our Battery FAQ's for further information.
Technical data Value Weight 6,5 kg Rated voltage 36 V Battery Capacity 1) 916 W·h Rated capacity (IEC 61960) 21,8 A·h Battery cell technology LITHIUM-ION PRO Discharge temperature range -10-50 °C Charge voltage 41 V Temperature range 5-40 °C Weight with carrying system 7,8 kg 1) Power capacity according to the specifications of the cell manufacturer. The actual power capacity available during operation is lower, to increase service life
Versions
Price- AR 2000, 916 Wh battery energy from $1,720.00*
* Manufacturers recommended retail pricing. Prices reflect current recommended retail pricing and may be a promotional price. These prices are subject to change without notice. For more information about current promotions, please visit our Current Promotions page by clicking here.
-
-
-
AL 101 Battery Charger
230 V. Compatible with STIHL AP and AK batteries. With charge level indicator (LED). Cord wrap with velcro. Wall mounting possible. For more information about our STIHL Cordless Tools please see our Battery FAQ's for further information.
Technical data Value Charging current 1,6 A Weight 0,7 kg Rated voltage 240 V Rated current 0,7 A Protection class II Versions
Price- AL 101 Charger from $95.00*
* Manufacturers recommended retail pricing. Prices reflect current recommended retail pricing and may be a promotional price. These prices are subject to change without notice. For more information about current promotions, please visit our Current Promotions page by clicking here.
-
-
-
AL 300 Quick Charger
Quick charger for STIHL Lithium-ion batteries. With operating mode indicator and integral air cooling. Rated voltage: 230 V. For more information about our STIHL Cordless Tools please see our Battery FAQ's for further information.
Technical data Value Charging time AP 200 1) 55 min Charging time AP 300 1) 75 min Charging time AR 3000 1) 300 min Weight 1,2 kg Rated voltage 220-240 V Power consumption 290,0 kW Charging current 6,5 A 1) Up to 100 % capacity
Versions
Price- AL 300 quick charger from $185.00*
* Manufacturers recommended retail pricing. Prices reflect current recommended retail pricing and may be a promotional price. These prices are subject to change without notice. For more information about current promotions, please visit our Current Promotions page by clicking here.
-
-
-
AL 500 Super Fast Battery Charger
Hi-speed charger for STIHL professional lithium-ion batteries, the AP 200, AP 300 and AR 900. The AL 500 can be wall mounted for convenient storage. For more information about our STIHL Cordless Tools please see our Battery FAQ's for further information.
Technical data Value Charging time AP 200 1) 35 min Charging time AP 300 1) 35 min Charging time AR 3000 1) 160 min Weight 1,3 kg Rated voltage 220-240 V Power consumption 570,0 kW Charging current 12 A Weight 1,3 kg Charging time AP 100 1) 35 min 1) Up to 100 % capacity
Versions
Price- AL 500 Fast Charger from $365.00*
* Manufacturers recommended retail pricing. Prices reflect current recommended retail pricing and may be a promotional price. These prices are subject to change without notice. For more information about current promotions, please visit our Current Promotions page by clicking here.
-
-
-
Carrying system
Convenient, lightweight carrying system for up to two AP batteries. Can be used in combination with an AP holster with a connecting cable – as an alternative to the AR backpack batteries. Suitable for housing with a connecting cable and tools with a battery slot.
Versions
Price- Carrying system from $200.00*
* Manufacturers recommended retail pricing. Prices reflect current recommended retail pricing and may be a promotional price. These prices are subject to change without notice. For more information about current promotions, please visit our Current Promotions page by clicking here.
-
-
-
Carry bag
Ideal for transporting and storing your CombiEngine, along with the Brushcutter, or Long-reach Hedgetrimmer attachments. Also suitable for the following Cordless tools Hedgetrimmer, Long-reach Hedgetrimmer and Blower.
Versions
Price- Carry bag from $105.00*
* Manufacturers recommended retail pricing. Prices reflect current recommended retail pricing and may be a promotional price. These prices are subject to change without notice. For more information about current promotions, please visit our Current Promotions page by clicking here.
-
-
-
Carbon Extension 1 Metre
Extra light weight shaft extension. Carbon inner shaft, aluminium outer. Reach extension: 1 m. For use with the Pole pruner (HT) and Long-reach Hedgetrimmer (HL) CombiTools.
STIHL Fieldays GST OFF Promo. online here or contact your local STIHL SHOP or STIHL Stockist for details. Offer valid until 19 June 2023.
Versions
Price- Carbon extension 1 m from $251.00*
* Manufacturers recommended retail pricing. Prices reflect current recommended retail pricing and may be a promotional price. These prices are subject to change without notice. For more information about current promotions, please visit our Current Promotions page by clicking here.
-
-
-
AP adapter
The AP adapter is needed to transfer power between a STIHL AP battery or a STIHL AR battery and a power tool with a battery slot in combination with the AP holster with connecting cable.
Versions
Price- Adapter AP from $115.00*
* Manufacturers recommended retail pricing. Prices reflect current recommended retail pricing and may be a promotional price. These prices are subject to change without notice. For more information about current promotions, please visit our Current Promotions page by clicking here.
-
The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Stockist for further information.
Documents
Owners manuals and safety brochures
| Languages | Date | Link |
|---|---|---|
 International
|
26/07/2022 |
