Selection Cordless Long-reach Hedgetrimmers

HLA 85 Kit

General

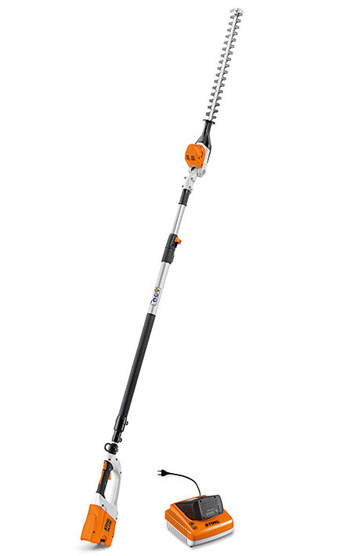

HLA 85
More pictures

Cordless hedge trimmer for professional use, with long reach via telescopic shaft. Infinitely variable speed control, adjustable for vertical, overhead and ground-level cutting, cutter bar adjustable by 115°, double-sided cutting blades, tool-free adjustment of the shaft length via the quick-tensioning lever, carrying length 180 cm, total length 260 to 330 cm, weight 4.4 kg. Set HLA 85 with AP 200 and AL 300.

Versions

Price

* Manufacturers recommended retail pricing. Prices reflect current recommended retail pricing and may be a promotional price. These prices are subject to change without notice. For more information about current promotions, please visit our Current Promotions page by clicking here.

The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Stockist for further information.

Technical data

HLA 85

Technical data

Rated voltage V 36
Weight kg 1) 4,4
Total length cm 330
Cutter Blades cm 50
Cutting capacity mm 26
Battery life time AP 100 min 2) up to 72
Battery life time AP 200 min 2) up to 144
Battery life time AP 300 min 2) up to 180
Battery life time AP 300 S min 2) up to 223
Battery life time AR 1000 min 2) up to 450
Battery life time AR 2000 min 2) up to 660
Battery life time AR 3000 min 2) up to 800
Tooth spacing mm 33

1) excluding battery
2) Battery life times are approximate and may vary depending on application

The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Stockist for further information.

Features

HLA 85

Standard features

  • Telescopic shaft with quick release
    Telescopic shaft with quick release

    The handy telescopic shaft can be extended from 260cm to 330cm. Simple shaft length adjustments are made using the quick release mechanism.

  • Quick head adjusting Zoom
    Quick head adjusting

    The cutter bar can be adjusted from -45 ° to 70 ° to suit any particular application and can be folded parallel to the shaft for easy transport.

  • Double-sided blade Zoom
    Double-sided blade

    Double-sided blade for perfect cuts both vertically and horizontally.

  • Protection guide Zoom
    Protection guide

    The standard blade protection guide facilitates cutting close to the ground or along walls, protecting blades from damage.

  • STIHL EC-Engine Zoom
    STIHL EC-Engine

    The STIHL brushless electric motor (EC) is very energy efficient and practically maintenance free. Thanks to its outstanding efficiency, the battery power is directly translated into impressive performance. During operation, the electronically controlled EC motor permanently monitors the load and adjusts the engine accordingly.

The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Stockist for further information.

Accessories

HLA 85

Accessories

    • AP holster with connecting cable Zoom
      AP holster with connecting cable

      Enables energy transfer from a STIHL AP battery to the BGA 100, FSA 130 and HSA 94.

    Versions

    Price

    * Manufacturers recommended retail pricing. Prices reflect current recommended retail pricing and may be a promotional price. These prices are subject to change without notice. For more information about current promotions, please visit our Current Promotions page by clicking here.

    • Catcher Plate Zoom
      Catcher Plate

      For catching cuttings. 50 cm bar length, tool-free, can be mounted on both sides. Suitable for HSA 66, HSA 86, all HSE and HLA models.

    Versions

    Price

    * Manufacturers recommended retail pricing. Prices reflect current recommended retail pricing and may be a promotional price. These prices are subject to change without notice. For more information about current promotions, please visit our Current Promotions page by clicking here.

    • AP adapter Zoom
      AP adapter

      The AP adapter is needed to transfer power between a STIHL AP battery or a STIHL AR battery and a power tool with a battery slot in combination with the AP holster with connecting cable.

    Versions

    Price

    * Manufacturers recommended retail pricing. Prices reflect current recommended retail pricing and may be a promotional price. These prices are subject to change without notice. For more information about current promotions, please visit our Current Promotions page by clicking here.

    • AP 300 S battery Zoom
      AP 300 S battery

      Compatible with the PRO cordless power system. Very powerful lithium-ion batteries with charge level indicator (four LEDs). 281 Wh battery power.

    Technical data
    Weight 1,8 kg
    Battery Capacity 1) 281 Wh
    Rated voltage 36 V

    1) Energieinhalt gemäß Zellherstellerspezifikation. Zur Erhöhung der Lebensdauer ist der in der tatsächlichen Anwendung zur Verfügung stehende Energieinhalt geringer.

    Versions

    Price

    * Manufacturers recommended retail pricing. Prices reflect current recommended retail pricing and may be a promotional price. These prices are subject to change without notice. For more information about current promotions, please visit our Current Promotions page by clicking here.

    • AP 200 battery Zoom
      AP 200 battery

      Compatible with the STIHL cordless power system. Light weight 36v Lithium-Ion PRO battery with charge level indicator (four LEDs). 187 Wh battery energy, weight 1,3 kg.

    Technical data
    Weight 1,3 kg
    Battery Capacity 1) 187 Wh
    Rated voltage 36 V

    1) Energieinhalt gemäß Zellherstellerspezifikation. Zur Erhöhung der Lebensdauer ist der in der tatsächlichen Anwendung zur Verfügung stehende Energieinhalt geringer.

    Versions

    Price

    * Manufacturers recommended retail pricing. Prices reflect current recommended retail pricing and may be a promotional price. These prices are subject to change without notice. For more information about current promotions, please visit our Current Promotions page by clicking here.

    • AP 100 battery Zoom
      AP 100 battery

      Compatible with the STIHL cordless power system. Light weight 36v Lithium-Ion PRO battery with charge level indicator (four LEDs). 94 Wh battery energy, weight 0.8 kg.

    Technical data
    Weight 0,9 kg
    Battery Capacity 1) 94 Wh
    Rated voltage 36 V

    1) Energieinhalt gemäß Zellherstellerspezifikation. Zur Erhöhung der Lebensdauer ist der in der tatsächlichen Anwendung zur Verfügung stehende Energieinhalt geringer.

    Versions

    Price

    * Manufacturers recommended retail pricing. Prices reflect current recommended retail pricing and may be a promotional price. These prices are subject to change without notice. For more information about current promotions, please visit our Current Promotions page by clicking here.

    • AP 300 battery Zoom
      AP 300 battery

      Compatible with the PRO cordless power system. Very powerful lithium-ion batteries with charge level indicator (four LEDs). 227 Wh battery power.

    Technical data
    Weight 1,8 kg
    Battery Capacity 1) 227 Wh
    Rated voltage 36 V

    1) Energieinhalt gemäß Zellherstellerspezifikation. Zur Erhöhung der Lebensdauer ist der in der tatsächlichen Anwendung zur Verfügung stehende Energieinhalt geringer.

    Versions

    Price

    * Manufacturers recommended retail pricing. Prices reflect current recommended retail pricing and may be a promotional price. These prices are subject to change without notice. For more information about current promotions, please visit our Current Promotions page by clicking here.

    • AR 1000 backpack battery Zoom
      AR 1000 backpack battery

      Backpack lithium-ion batteries with big capacity for longer running times. Sturdy housing with base and charge level indicator (six LEDs), comfortable and ergonomically harness with integrated carry handle and rain protection cover. 626 Wh battery energy, weight 5.5 kg.

    Technical data
    Rated voltage 36 V
    Battery Capacity 1) 626 Wh
    Weight with carrying system 5,5 kg

    1) Energieinhalt gemäß Zellherstellerspezifikation. Zur Erhöhung der Lebensdauer ist der in der tatsächlichen Anwendung zur Verfügung stehende Energieinhalt geringer.

    Versions

    Price

    * Manufacturers recommended retail pricing. Prices reflect current recommended retail pricing and may be a promotional price. These prices are subject to change without notice. For more information about current promotions, please visit our Current Promotions page by clicking here.

    • AR 2000 backpack battery Zoom
      AR 2000 backpack battery

      Backpack lithium-ion batteries with big capacity for longer running times. Sturdy housing with base and charge level indicator (six LEDs), comfortable and ergonomically harness with integrated carry handle and rain protection cover. 916 Wh battery energy, weight 7.8 kg. For more information about our STIHL Cordless Tools please see our Battery FAQ's for further information.

    Technical data
    Rated voltage 36 V
    Battery Capacity 1) 916 Wh
    Weight with carrying system 7,8 kg

    1) Energieinhalt gemäß Zellherstellerspezifikation. Zur Erhöhung der Lebensdauer ist der in der tatsächlichen Anwendung zur Verfügung stehende Energieinhalt geringer.

    Versions

    Price

    * Manufacturers recommended retail pricing. Prices reflect current recommended retail pricing and may be a promotional price. These prices are subject to change without notice. For more information about current promotions, please visit our Current Promotions page by clicking here.

    • AR 3000 Backpack Battery Zoom
      AR 3000 Backpack Battery

      Backpack lithium-ion batteries with big capacity for longer running times. Sturdy housing with base and charge level indicator (six LEDs), comfortable and ergonomically harness with integrated carry handle and rain protection cover. 1,148 Wh battery energy, weight 6.8 kg excluding / 8,1 kg including carrying system. With rain protection. For more information about our STIHL Cordless Tools please see our Battery FAQ's for further information.

    Technical data
    Rated voltage 36 V
    Battery Capacity 1) 1.148 Wh
    Weight with carrying system 8,1 kg

    1) Energieinhalt gemäß Zellherstellerspezifikation. Zur Erhöhung der Lebensdauer ist der in der tatsächlichen Anwendung zur Verfügung stehende Energieinhalt geringer.

    Versions

    Price

    * Manufacturers recommended retail pricing. Prices reflect current recommended retail pricing and may be a promotional price. These prices are subject to change without notice. For more information about current promotions, please visit our Current Promotions page by clicking here.

The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Stockist for further information.

Documents

Owners manuals and safety brochures

STIHL HLA 65, 85 (BG, CZ, D, DK, E, FIN, GB, H, N, P, PL, RO, RUS, S) Download PDF, 41,1 MB
STIHL HLA 65, 85 (D, DK, E, F, FIN, GB, GR, I, N, NL, P, S) Download PDF, 35,1 MB

Notes:

  • STIHL and VIKING online owner’s manuals are usually for the latest versions of the machine. Your product may be a slightly older production model but the manual will still be appropriate for the relevant model number.
  • The languages ​​contained in the document are also displayed in brackets, for example (GB) = English
