Selection Tillers

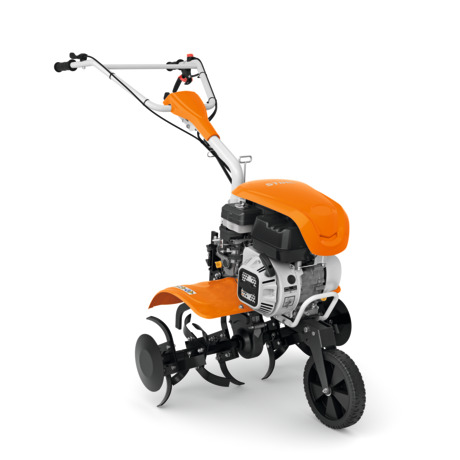

MH 610 Petrol Tiller

ROBUST TILLER FOR HEAVY-DUTY USE

General

The high-performance STIHL MH 610 Tiller is most suited for breaking up dense, solid ground and turning over large plots of land. Propelled by a powerful petrol engine, it effortlessly ploughs through the earth cutting through old roots and plant material with ease and bringing them to the surface. With two forward gears and a reverse gear as well as a central height adjustment feature, you can manoeuvre the Tiller with ease. Between uses, the Tiller can be moved on its wheel axle or placed in the cleaning position so you can conveniently clean or replace the blades. Manufactured from resistant materials such as reinforced steel, this Tiller is designed for heavy-duty use.

$1,695.00*

Versions

Price

* Manufacturers recommended retail pricing. Prices reflect current recommended retail pricing and may be a promotional price. These prices are subject to change without notice. For more information about current promotions, please visit our Current Promotions page by clicking here.

The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Stockist for further information.

Technical data

Technical data

Technical data Value
Working width cm 79
Drive 2V + 1R
Fuel tank capacity l 3,6
Engine type EHC 600,0
Weight kg 61

The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Stockist for further information.

Features

Standard features

  • POWERFUL ENGINE Zoom
    POWERFUL ENGINE

    This STIHL tiller is powered by a powerful engine. Characterized by a high degree of stability, the engine type is ideal for high-performance tilling work. It was designed as a drive motor with a horizontal shaft.

  • PIVOTING BRAKE SPUR Zoom
    PIVOTING BRAKE SPUR

    The brake spur can be used to adjust the blade entry depth. The 180┬░ swivelling spur makes it easier to work with the tiller in narrow passages and bends. It is also easily accessible, can be set to 3 different heights and is captive.

  • TRANSPORT WHEELS Zoom
    TRANSPORT WHEELS

    This STIHL tiller is fitted with a wheel axle at the rear for smooth transportation. The pair of wheels can be folded up during operation.

  • SIMPLE THROTTLE ACTUATION Zoom
    SIMPLE THROTTLE ACTUATION

    The STIHL tiller can be steered using both handles. The throttle is within reach of the handles and the speed controller on the handlebar can be operated with the thumb while steering. As a result, the power of the tiller can be controlled precisely when tilling.

  • SHREDDER BLADES Zoom
    SHREDDER BLADES

    The shredder blades have a special shape that turns soil over efficiently with an optimized burrowing action.

  • DETACHABLE HOE SET Zoom
    DETACHABLE HOE SET

    The detachable hoe set allows variable adjustment of the working width. As a result, crops can be planted in rows close to one another. The lateral discs protect existing plants from sustaining damage during tilling.

  • ADJUSTABLE BAR Zoom
    ADJUSTABLE BAR

    The ergonomically shaped handlebar can be adjusted both vertically and laterally, without tools. It can also be folded to allow simple transportation and space-saving storage.

The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Stockist for further information.

Documents

Owners manuals and safety brochures

Languages Date Link
manual icon en / fr 10/06/2020
